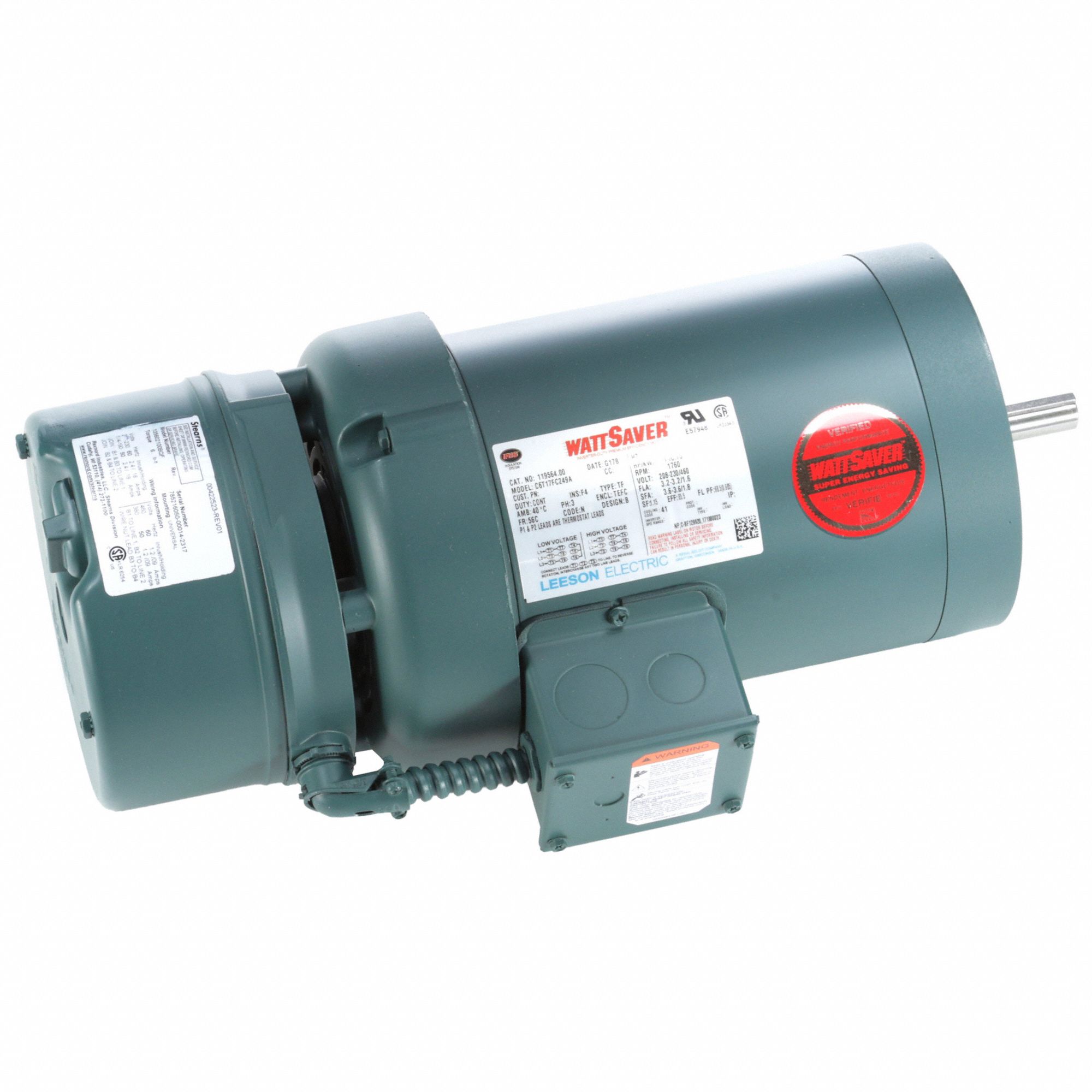

LEESON 119564.00 Brake Motor 1 hp Rating 6 ft-lb 798KM5
Grainger (110603)
99.3% positive feedback
Price:
US $2,294.75
ApproximatelyS$ 2,949.67
+ $953.87 shipping
Returns:
No returns, but backed by .
Condition:
Oops! Looks like we're having trouble connecting to our server.
Refresh your browser window to try again.
About this product
Product Identifiers
BrandLEESON
MPN11956400
GTIN0691720098868
UPC0691720098868
eBay Product ID (ePID)3065044572
Product Key Features
Inverter/Vector Duty RatingInverter Duty
Base RPM1760
Insulation ClassF (Max 311°F)
Current TypeAC
Service Factor1.00
NEMA Frame SuffixC
Full Load Amps3.2/1.6
Mounting TypeFace-Mounted
Reversible/Non-ReversibleReversible
Nominal Rated Input Voltage230 V, 460 V
Actual Rated Input Voltage208-230
Special Motor ConstructionBrake Motor
Rated Load (HP)1
AC Frequency Rating60 Hz
Enclosure TypeTEFC (Totally Enclosed Fan Cooled)
Shaft TypeKeyed
AC Motor TypeInduction/Asynchronous
Shaft Diameter5/8 in
Model119564.00
AC PhaseThree Phase
