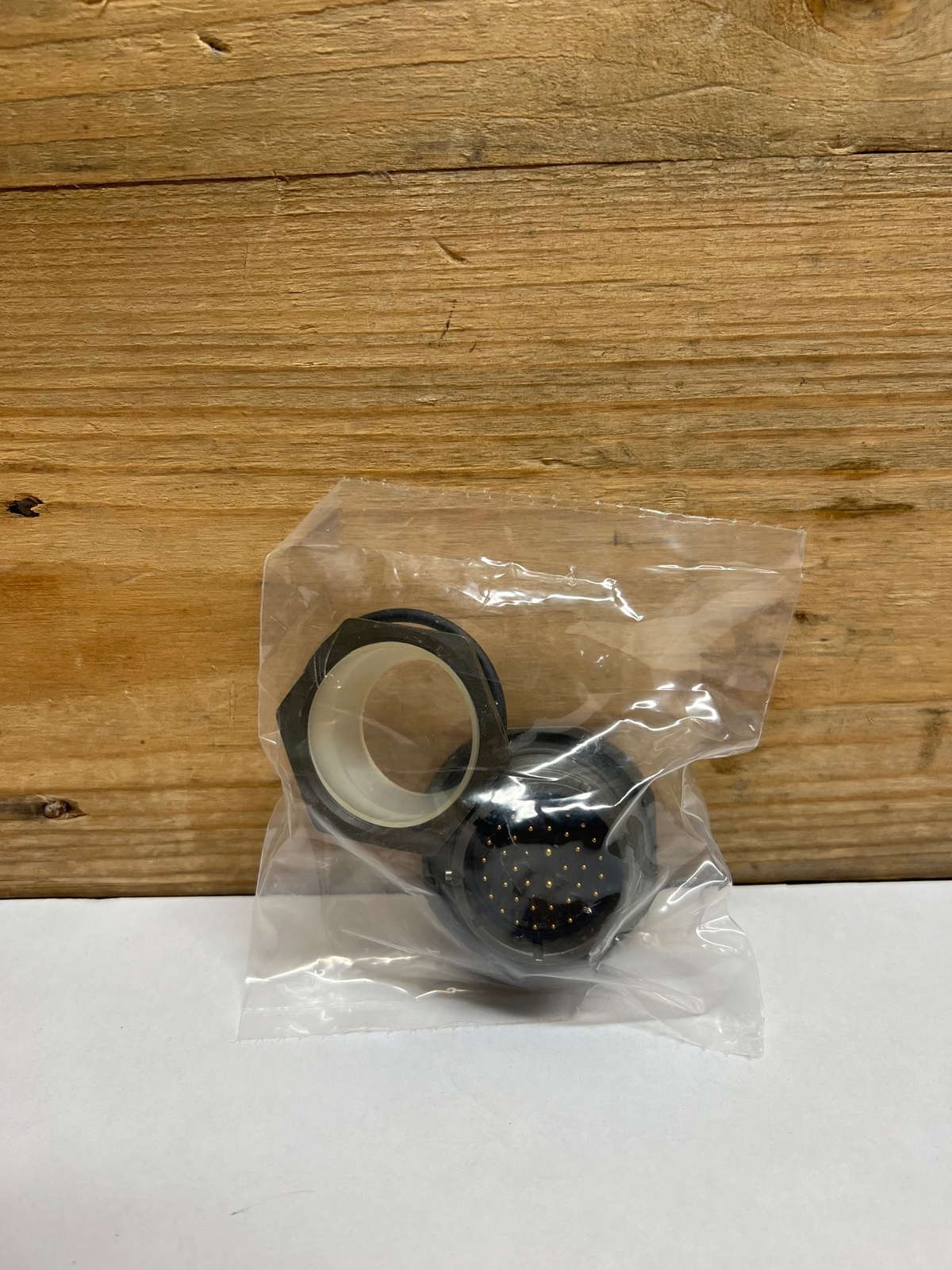

39-Pin Circular MIL Spec Connector PT07P-20-39P Amphenol
US $18.71
ApproximatelyS$ 24.00
or Best Offer
Condition:
New
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
6 available4 sold
Oops! Looks like we're having trouble connecting to our server.
Refresh your browser window to try again.
Shipping:
US $7.90 (approx S$ 10.13) USPS Ground Advantage®.
Located in: Macon, Georgia, United States
Delivery:
Estimated between Wed, 3 Sep and Tue, 9 Sep to 94104
Returns:
60 days return. Seller pays for return shipping.
Coverage:
Read item description or contact seller for details. See all detailsSee all details on coverage
(Not eligible for eBay purchase protection programmes)
Seller assumes all responsibility for this listing.
eBay item number:256243265087
Item specifics
- Condition
- Contact Material
- Copper Alloy
- Connector Style
- Circular MIL Spec
- Polarization Method
- Key, multiple key groove
- Terminal Location
- Back single mating end single contact grouping
- Mating End Quantity
- 1
- MPN
- PT07P-20-39P
- Body Style
- Straight shape, thru-hole mount, external coupling
- Thread Quantity per Inch
- 18
- Distance from Mounting Shoulder to Front Face
- 0.868 inches minimum and 0.900 inches maximum
- Precious Material and Location
- Contact surface gold and contact surface silver
- Number of Poles
- 1
- Connector Cable Strain Relief Method
- Potting type
- Item Length
- 1.690 inches maximum
- Overall Diameter
- 1.796 inches minimum and 1.828 inches maximum
- Contact Maximum AC Voltage Rating in Volts
- 500.0 single mating end single contact grouping
- Bushing Accommodation Hole Shape
- Round W/flat
- Included Contact Quantity I
- 2 single mating end 1ST contact grouping
- NSN
- 5935-00-889-8767
- Country/Region of Manufacture
- United States
- Material
- Aluminum Alloy
- Nominal Thread Size
- 1.375 inches
- Insert Material
- Rubber single mating end
- Thread Class
- 2A
- Thread Series Designator
- UNEF
- Precious Material
- Gold and silver
- Threaded Device Type
- Mounting bushing
- Contact Maximum DC Voltage Rating in Volts
- 700.0 single mating end single contact grouping
- Number of Ports
- 1
- Contact Position Arrangement Style
- 20-39 single mating end
- Compatible Mounting Type
- Panel
- Connector Locking Method
- Bayonet latch
- Shell Type
- Solid
- Number of Pins
- 39
- Brand
- Amphenol
- Contact Maximum Current Rating in Amps
- 7.5 single mating end 2ND contact grouping
- Included Contact Type
- Round pin single mating end single contact grouping
- Color
- Olive Drab
- Shell Surface Treatment
- Cadmium
- Included Contact Quantity II
- 37 single mating end 2ND contact grouping
- Contact Removability
- Removable single mating end single contact grouping
- Mounting Facility Thickness
- 0.062 inches minimum and 0.250 inches maximum
- Termination Type
- Solder
- Thread Direction
- Right-hand
- Type
- Electrical Receptacle Connector
